XJZY-(20L 35L 55L M50)¡Á350~XJZY-(75L 110L M80 M120) ¡Á380

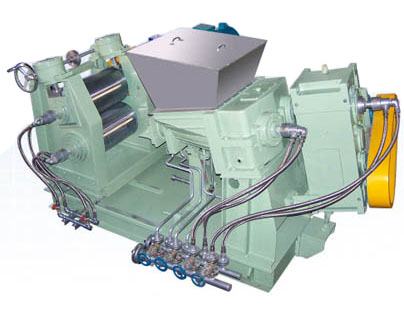

Double conical screw auto-feed sheeting machine feature:
1.this machine is used for high polymer mixture, and rubber stock can be sheeting stable.
2.the machine can sheet the master batch and final mixing, stock can be extruded from roller head at below 20¡æ degree of normal sheeting machine, so the machine is good for final mixing.
3.the area of machine is small ,and easy to match with up-stream and down-auxiliary machine.
4.the axial of machine is lean angle 15, there is no stock left in roller. (Please see drawing 3.)
5.outer roller of screw ,tapering double screw and roller head are jacket type structure, and cooled by water or heated by steam.(please see drawing 4)
6.the stock can be parting off by tapering double screw is with big screw diameter and distance of blades (please see drawing 3) . the big cavity of screw, and the heat can be absorbed and taking away when the screw and machine body connected with stock in order to ensure good cooling effect.
7.there is big conical degree of tapering double screw and a definite helical angle and depth of blade can ensure the stock be in best compressed situation, make high polymer mixture can be sent to nip of head roller stable ,at the meaning time avoid the mixture heating.
8.the roller can be separated with auto-feeding device by slide way easily, the big size of auto-feeding sheeting machine can rise roller to 200mm, head double roller can be separated above 200mm easy to clean the mouth of auto-feeding device and roller.
9.big size of hopper , and can receiving the stock from dispersion mixer or bambury mixer.
10.the motor is AC invertor , speed is reliable.
The advantages of Auto-feeding sheeting machine.
1.save electric energy
Set a example of XWY-55X345 auto-feeding sheeting machine , the day electric consumption is
2.save labor cost.
Auto-feeding sheeting machine doesn¡¯t need person to operate ,if it is open mill , need one or two workers to operate.
3.the machine is high efficiency.
4.the slabs are good quality of auto-feeding sheeting machine.
The main parameter and installation type:
|
Model |
Item |
35¡¢55 |
75¡¢110 M50¡¢M80 |
150¡¢200 M120 |
300 M160 |
|
1 |
Output capacity : |
385L/h |
700L/h |
1400L/h |
5000L/h |
|
2 |
The motor power of Bi-pyramid |
15 |
22 |
110 |
132 |
|
3 |
The speed of Bi-pyramid |
1.3¡«13 |
1.3¡«13 |
1.2¡«12 |
1.2¡«12 |
|
4 |
Capacity of hopper |
110 |
150 |
350 |
400 |
|
5 |
The power of |
7.5 |
15 |
30 |
55 |
|
6 |
Diameter of roller |
330 |
345 |
600 |
700 |
|
7 |
Width of roller£¨mm) |
450 |
600 |
650 |
900 |
|
8 |
The nip of roller |
3¡«8 |
3¡«8 |
4¡«10 |
4¡«10 |
|
9 |
The speed of roller |
1.1¡«11 |
1.3¡«13 |
1.5¡«15 |
1.8¡«18 |
|
10 |
Width of slab(max |
250 |
350 |
450 |
800 |
|
11 |
The angle of equipment installation |
15° |
|||
|
12 |
The angle of bi-pyramid |
15° |
|||
|
13 |
The central high of roller |
860 |
1058 |
800 |
800 |
|
14 |
Installation type |
£¨machine body can removable£© |
200 |
||
