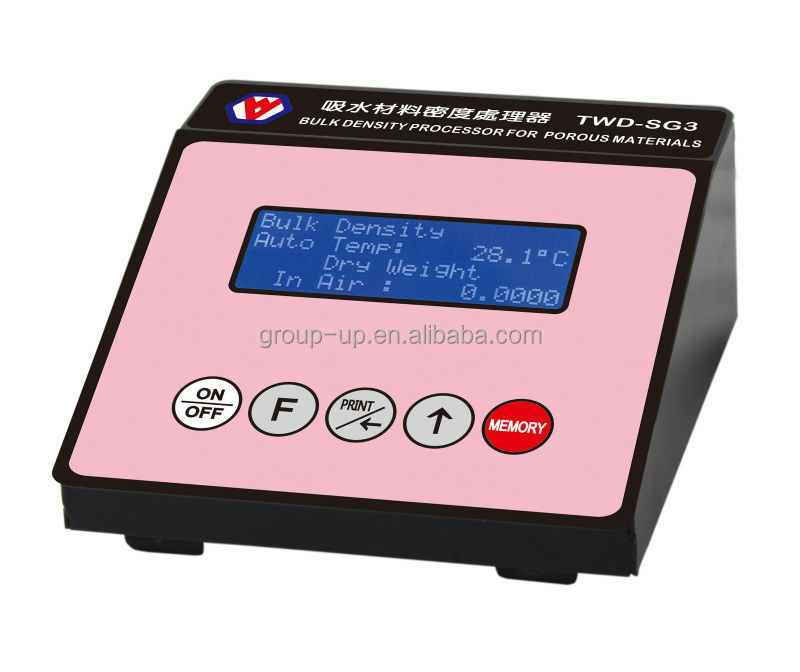

Bulk Density Calculator TWD-SG3
Bulk Density, Oil - Content ,Porosity and Water absorption can be showed directly.



            Bulk Density Calculator  TWD-SG3





Can be connected to any balance with RS-232 interface;

it is suitable for the balance with weighing precision from 0.1g to 0.01mg; sample density / purity can be showed directly.




Application:

Fine ceramic, asphalt concrete, graphite carbon, refractory materials, rare earth metal materials, soil particle, aggregate concrete, powder metallurgy structural parts, sintered oil-bearing, wood, elastic materials, mineral rock, new materials research units.





Principle:

Referring to the standard of ASTM, GB/T, YB/T, JIS, MPIF, AASHTOT, ISO, by applying boiling water method, full impregnation method, partial impregnation method, surface coating method and other waterproofing work, according to the buoyancy of the object immersed in liquid and hydrostatics principle, density, volume, porosity, oil content of porous solid materials can be showed.





Functions:

1. Baud rate 300, 600, 1200, 2400, 9600, 19200, 115200 bit/s can be set.



2. Odd parity, Even Parity, Non parity can be set.



3. Solution and water temperature compensation can be set.



4. Temperature automatic  detection  function can be set; temperature sensor can calibrate the temperature precision to +/- 0.1°c.



5. Backlight brightness can be set.



6. Density precision can be set from 0.1g/cm3 to 0.00001 g/cm3.



7. One transmission mode and Continuous Transmission mode can be chosen.



8. Printing method can be chosen.

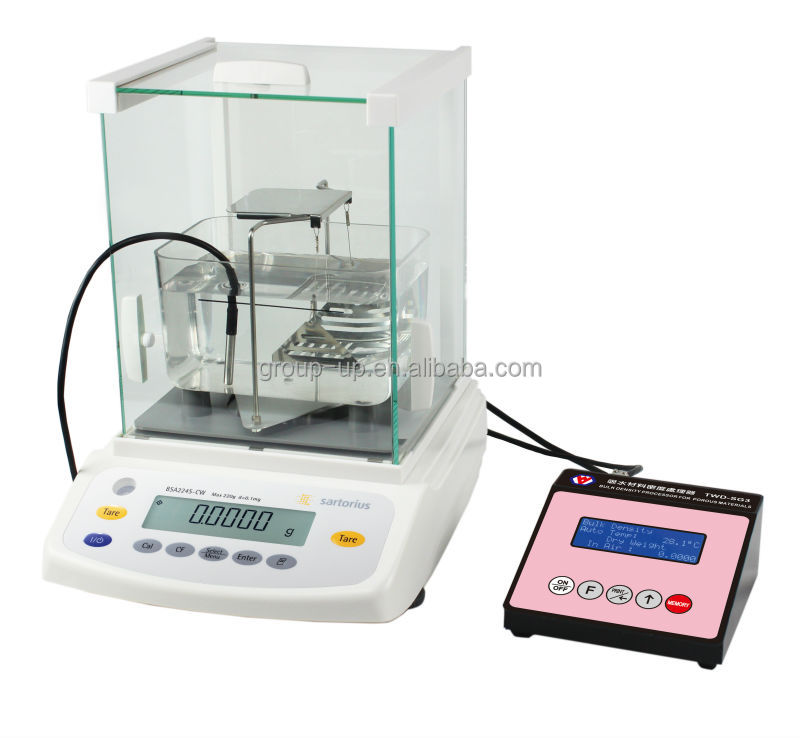

Example after combination:





     It has synchronous function









MatsuHaku makes good quality. Made In Taiwan
